Bromsmurfs mechanical shop

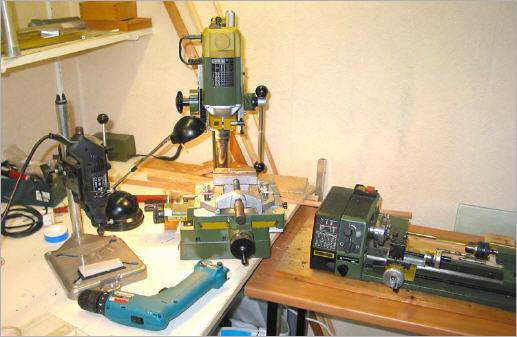

The BromShop, overview

The BromShop Bromsmurf has a small but very well equiped shop for all mechanical work that has to be done for the electronics engineering and prototyping.

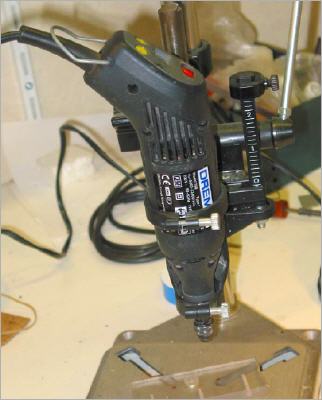

The Dremel multi tool

The Dremel Multi-Pro, 5.000 to 33.000 rpm Extremely good for the small details. Drills holes free hand from 1 to 3 mm with ease and there are lots of (high speed) cutting,grinding and trimming tools available. To me it is like a 'third hand'.

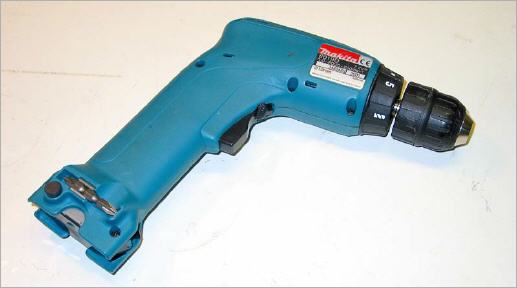

The very powerfull yet elegant Makita

Makita battery powered drilling tool 0-200/600 rpm. Most often used for 'ad-hoc' drilling tasks and together with the Dremel for the detail work.

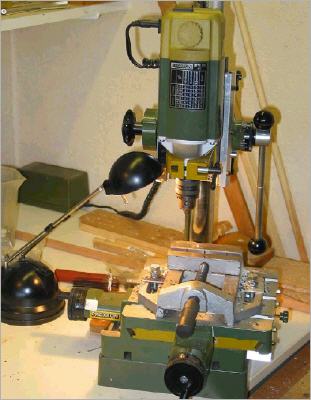

Precision cutting and drilling machine

Precision cutter and drill, 900-6.000 rpm To cut holes of arbitrary shape in printed circuits and frontplates of electronics cabinets. To drill holes from 1 to 8 mm in non-ferro metals and plastics, in ABS up to 20 mm. The cutter has a 150x150 mm X-Y positioning table.

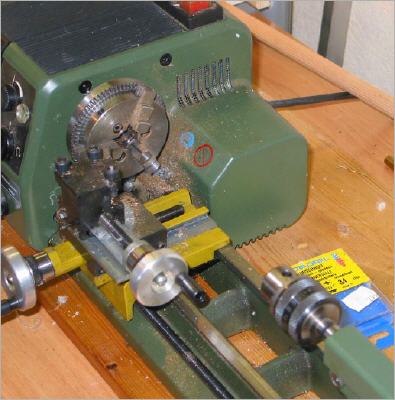

The lathe

Mini lathe to make all the nipples and fittings Not used as often as the other machines but sometimes essential to let a project become succesfull.
